Storage Shelf Roll Forming Machine

  • The warranty is 36 months after the client receives the machine.
  • Within The 36 months, we will send replacement parts to the client free of charge.
  • Provide life technology support and maintenance service .
  • Operation manual and installation videos will be supplied to buyers when delivery of machines.

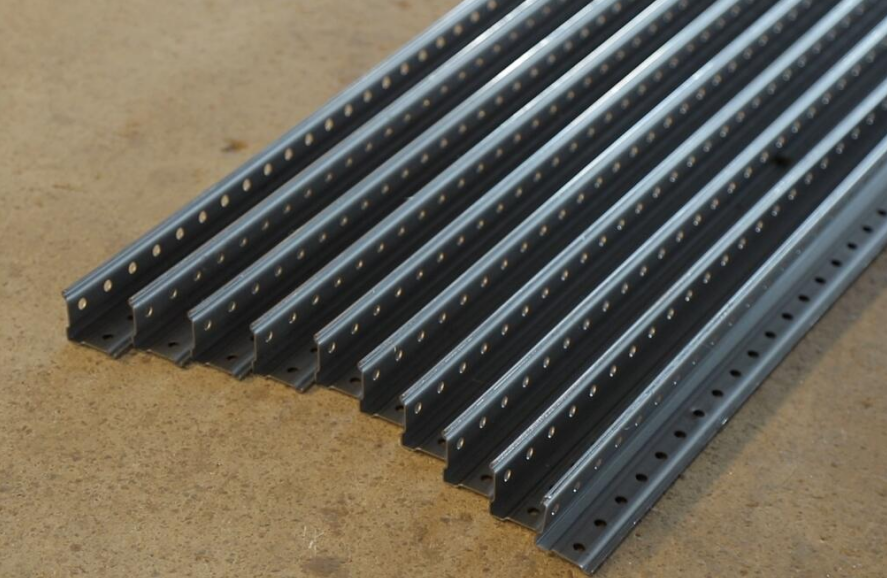

Product Of Storage Shelf Roll Forming Machine

Control The Quantity And Cutting Length AutomaticallyInput the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.One time buyer can set 20 batch data in the programme.

Technical data of Storage Shelf Rol Forming Machine

Suitable Material Cold-rolled steel coils
Thickness of raw material 2.0-2.5 mm (235-345Mpa)
Material of roller Cr12 mould steel being quenched treatment,HRC58-60
Material of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment. Roller grinder milling.
Forming speed About 15m/min
Power Requiremen Main motor power: 22Kw(Depend on final design)
Hydraulic station power: 5.5Kw (Depend on final design)
Diameter of shaft for rollers 82mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers About22 stations
Punching system Servo continuous punching
Weight of machine About 16500KGS
Size of machine installation About 12mX1.7mx2.65m

How do we Manufacture
Storage Shelf Roll Forming Machine

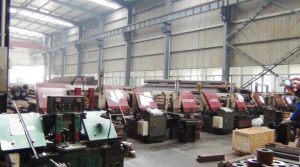

  • We buy raw material for our made machines such as steel plate、H steel frame and steel pipes from famous companies in China.

  • For example buy material from An Steel and Hangzhou Iron and Steel Group.

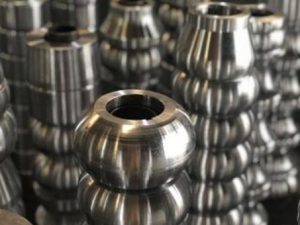

  • All Rollers manufactured from 45# steel

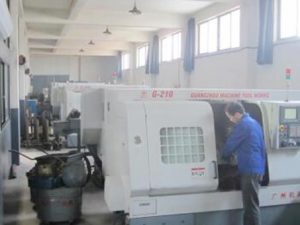

  • CNC machines can improve rollers precision.
  • Chromate finish on surface to add hardness of rollers.

  • Solid shafts dia. 72 mm for material thickness.

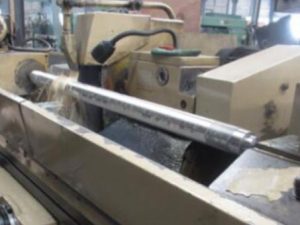

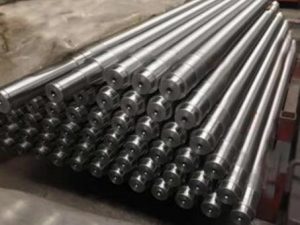

  • All shafts are tooled twice by cylindrical grinding machine to ensure final precision.
  • Guarantee buyers get high accuracy deck sheet from Zhongyuan made machine.



    • Design bearings inside the rollers to allow machine run with less loading so that rollers not easy to damage.
    • Ensure the same speed between all the rollers, no speed difference between rollers, improve the forming accuracy.
    • Bearings are helping to prolong machine life. Our made forming machines are allowed using more 15 years.
  • Machine frame made from H450 type steel by welding,planned on surface to guarantee precision
  • Side wall thickness: 45mm



  • Motor Driving, Worm gear driving transmission, about 15-steps stations to form
  • Main Motor=22KW , Frequency speed control
  • All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
  • Forming speed about 15m/min.
  • All processed rollers are assembled on the carpet to avoid scratching on the rollers’ surface.

  • All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
  • All processed rollers are assembled on the carpet to avoid scratching on the rollers’ surface.



  • Automatic post-cutting style, guarantee guardrail panel shape.
  • All cutting frame are heat treatment to remove the original stress of steel, reduce deformation, improve stability
  • Cutting tool material: Cr12MoV,hardness can reach 58-60Hrc.
  • Machine can cut as buyers wanted sheet length,full automatically.
  • Control The Quantity And Cutting Length Automatically
  • Input the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.
  • One time buyer can set 20 batch data in the programme.

    Components of control system

    PLC, Inverter, Touch Screen, Encoder, relays, etc

    PLC

    Mitsubishi (Japanese brand) (Siemens for option)

    Inverter

    Mitsubishi (Japanese brand) (Siemens for option)

    Touch screen

    Mitsubishi (Japanese brand) (Siemens for option)

    Encoder

    OMRON or NEMICON (Japan brand)

    Relays

    Schneider(French brand)

    Limit switch

    Schneider(French brand)

    Cut-to-Length Tolerance≤±1 mm

The Best Solution For
Storage Shelf Rol Forming Machine

China Zhongyuan Machinery Manufacturer established in the year 2003 are indulged in manufacturing and exporting Roll Forming Machine. We offer an extensive range of Roll Forming Machine, C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine. We supply the best quality products to our clients. in addition to this, we also provide on-time delivery of roll forming machines.

We guarantee lifetime services for our machines.Our experience technicians can go to your factory and train your workers.

Get Free Quote

Quick Details

  • Brand: Zhongyuan
  • Machine name:Storage shelf roll forming machine
  • Raw material:GI steel coils or black steel coils
  • Raw material thickness :2.0-2.5mm
  • Motors required :22+5.5KW
  • Punching style: Servo controlling and continuous punching
  • Forming speed: about15m/min.
  • Gross weight: 16500kgs
  • Diameter of shaft for rollers: dia. 82mm
  • Punching head material: CR12MOV.
  • Heat treatment.
  • Cutting Blade:
  • CR12MOV. Heat treatment. Guarantee 3 years usage life.
  • Machine size: About 12mX1.7mx2.65m
  • Controlling system :
  • Mitsubishi PLC , converter and screen.
  • Guarantee term : two years
  • Delivery time: within 80 days.

Machine Description

  • Storage Rack Roll Forming Machine, Upright Shelf Roll Forming Machine is one brand equipment used for making rack for supporting supermarket shelf, Storage Rack, Ware House Rack and others.The Upright Shelf Roll Forming Machine can be called as storage rack roll forming machine, it adopts three pieces cutting blades for ensure the shelf rack product is beautiful.

  • This Storage Rack Roll Forming Machine adopts servo controlled material feeding technology for complex punching to guarantee precision.Except this, we also manufacture solar rack roll forming machine,Pallet Rack Roll Forming Machine,Unistrut Forming Machine.

Frequently Asked Questions

1) Q: Are you manufacturer or trading company?

A: We are professional manufacturer for metal cold roll forming machine since 2003.

Our efforts are devoted to the research and development of how to provide customers with high-quality and durable roll forming machines.

2) Q: Do you provide installing and training overseas?

A: Yes. We can send technician to install the machines when you get machines in your factory.

Also we provide operation manual and installation video to guide your installation.

3) Q: How is your after sales support?

A:  For our roll former, 36 month free warranty,

And our company promises that we will provide product service life maintenance service.

4) Q: How does your factory do regarding quality control?

A: We choose famous steel company to buy raw material for our machines,

All-in -House processing way to guarantee part of machines quality,

Our company has successfully established and passed the ISO9001 quality insurance system,

Also they had been approved with CE certificate.

Quality control complies with ISO9001 .

5) How can I trust you that machines pasted testing running before shipping?

A: 1) Each machine will be inspected in our Quality Inspection Department .

     Buyers will get detail inspection video and record for his ordered machines.

   2) We welcome your visit us and test machine by yourself in our factory. Or you arrange your friends or partner in China to do inspection before delivery.

6) Q: Do you sell only standard machines?

A: No. We can design machines as per your request. For example, your profile drawing, your special technology request, etc.

7) Q: What is your warranty?

A:  For our made roll forming machines , guarantee 36 month free warranty,

     And our company promises that we will provide product service life maintenance service.

 8) Q: How do you guarantee I can get good quality machine from your company ?

 A: We say you can get good quality machine from us not to boast about how great we are. We have so many successful cases with our customers. For example, one customer from Macedonia sent email to feedback that he is happy for our made one set of roof and wall roll forming machine and one set of step tile machine which were bought in 2009.

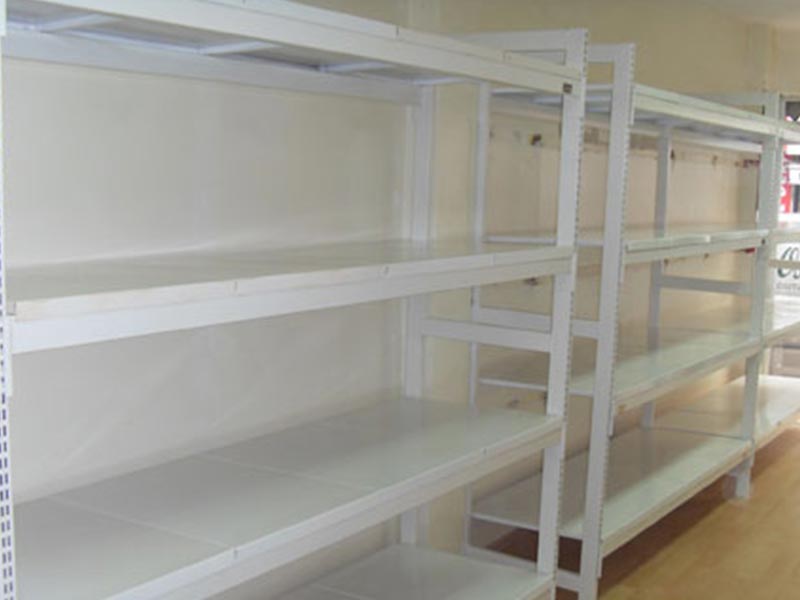

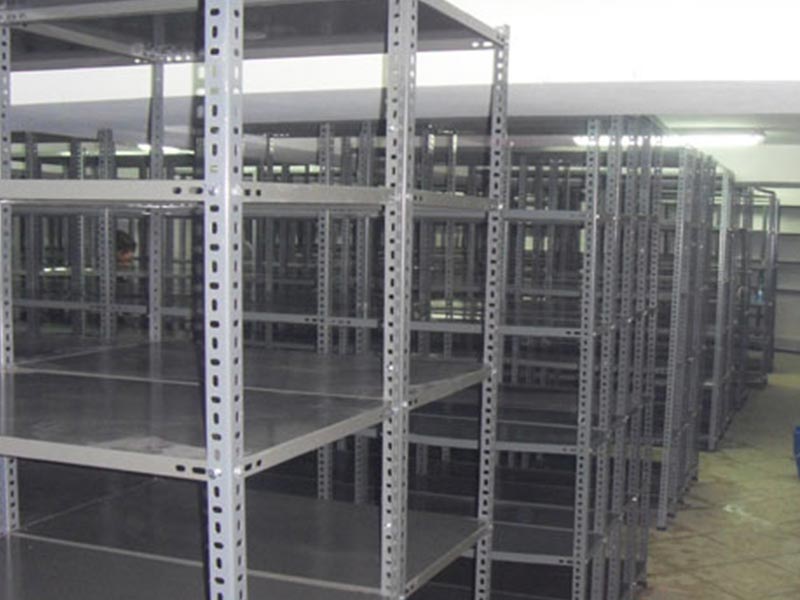

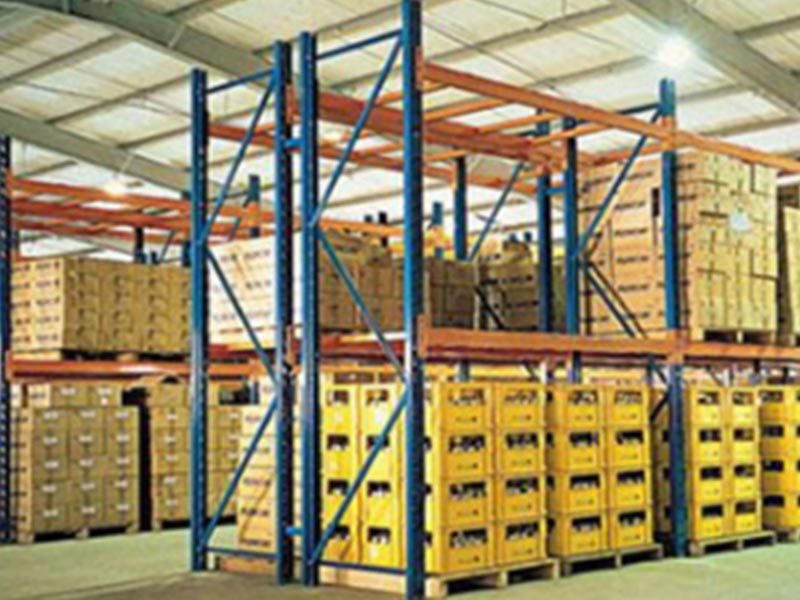

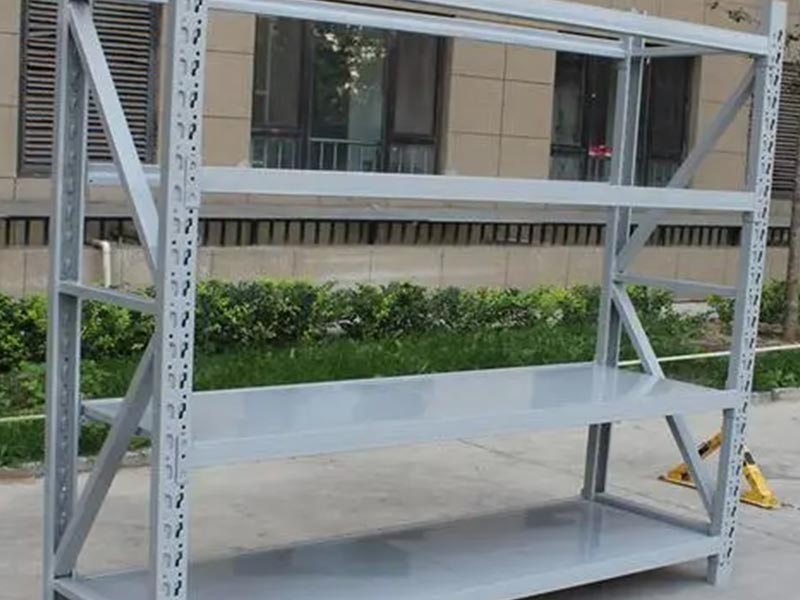

Application of Storage Shelf Rol Forming Machine
