Gutter Roll Forming Machine

  • The warranty is 36 months after the client receives the machine.
  • Within The 36 months, we will send replacement parts to the client free of charge.
  • Provide life technology support and maintenance service .
  • Operation manual and installation videos will be supplied to buyers when delivery of machines.

Technical Data Of Gutter Roll Forming Machine

Suitable Material PPGI COILS
Thickness of raw material 0.4-0.6mm (235-345Mpa)
Material of roller 45# steel being quenched treatment
Material of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment. Roller grinder milling.
Forming speed about 25m/min
Power Requiremen Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
Diameter of shaft for rollers 55mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers about 24stations for main rollers
Weight of machine About 7000KGS
Size of machine installation about 11.5m x 0.9 m x1.5m

The Best Solution For
Gutter Roll Forming Machine

China Zhongyuan Machinery Manufacturer established in the year 2003 are indulged in manufacturing and exporting Roll Forming Machine. We offer an extensive range of Roll Forming Machine, C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine. We supply the best quality products to our clients. in addition to this, we also provide on-time delivery of roll forming machines.

We guarantee lifetime services for our machines.Our experience technicians can go to your factory and train your workers.

Get Free Quote

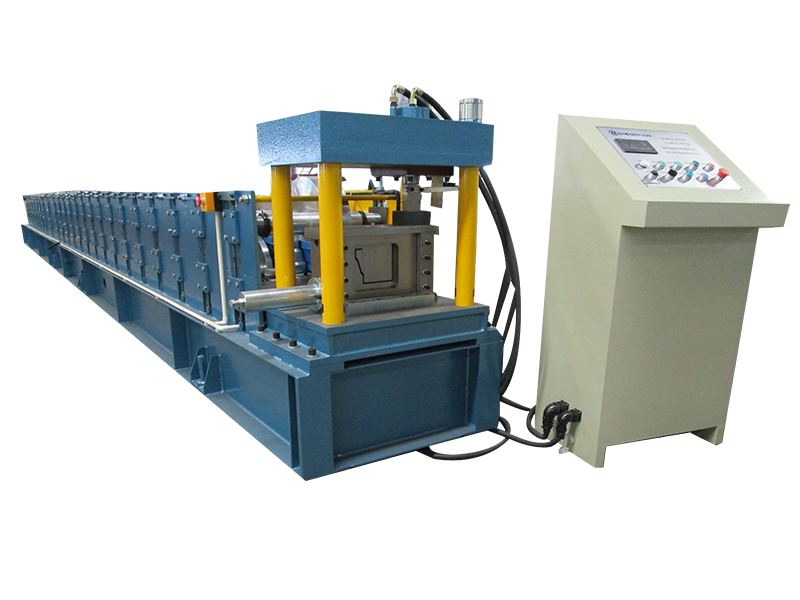

Machine Components

  • Brand: Zhongyuan
  • Line name:Gutter roll forming machine
  • Suiting raw material: PPGI coils
  • Suiting material thickness :0.5mm
  • Yield strength of material : 235-345Mpa
  • Electrical power totally : 7.7KW
  • Forming : about20m/min.
  • Machine weight: 7000kgs
  • Material of rollers:High quality 45# steel , CNC process, plated chrome on Surface.
  • Marital of shaft: High quality 45# steel with heat treatment,Roller grinder milling.
  • Blade material: CR12MOV. Heat treatment. Guarantee 3 years usage life.
  • Machine size: About 11.5 mX0.9mx1.5 m
  • Controller : Mitsubishi PLC , converter and screen. Full automatically.
  • Voltage: 380/3P/50HZ
  • Warranty: two years
  • Payment term: by T/T or L/C at sight.

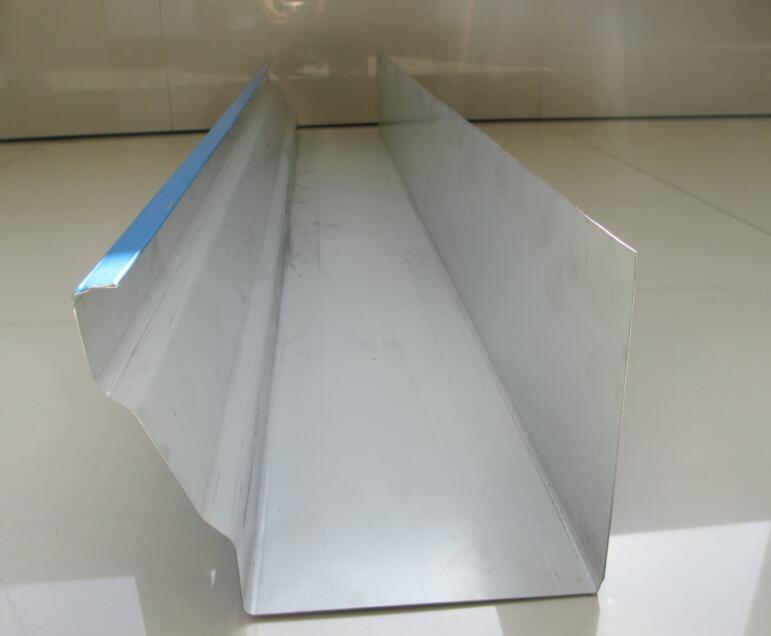

Product Showing

made by gutter roll forming machine

Application of Gutter Roll Forming Machine
