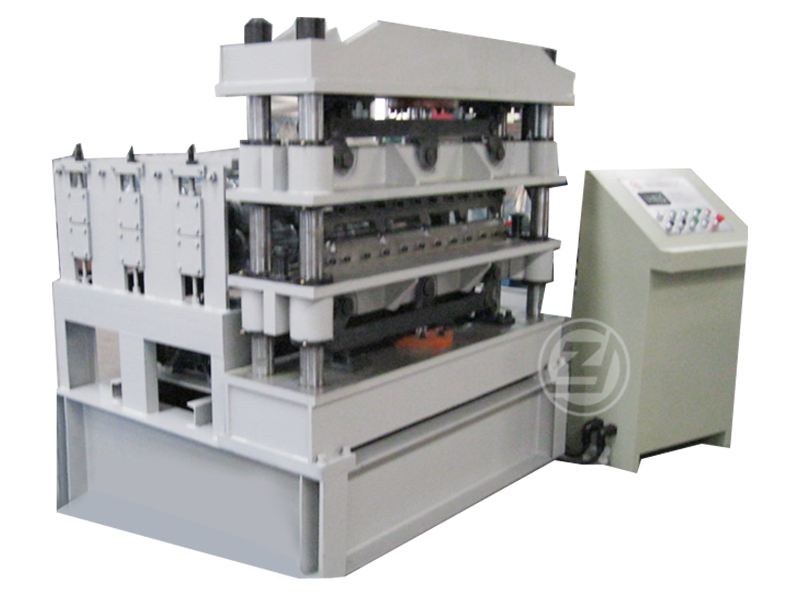

Crimping Machine
- The warranty is 36 months after the client receives the machine.
- Within The 36 months, we will send replacement parts to the client free of charge.
- Provide life technology support and maintenance service .
- Operation manual and installation videos will be supplied to buyers when delivery of machines.
Technical Data Of Crimping Forming Machine
| Raw material | corrugated steel sheet (235-345Mpa) |
| Material of roller | 45# steel being quenched treatment |
| Material of crimping device | Cr12 mould steel with quenched treatment, HRC58-60 |
| Material of shaft | High quality 45# steel with heat treatment. Roller grinder milling. |
| Crimping speed | about 10times /minute |
| Power Requirement | Main motor power: 2.2Kw(Depend on final design) |
| Hydraulic station power: 5.5Kw (Depend on final design) | |
| Diameter of shaft for rollers | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Quantity of feeding rollers | about 3 stations for main rollers |
| Weight of machine | About 2000KGS |
| Size of machine | about 1600mm×1800mm×1600mm |
The Best Solution For
Crimping Machine
China Zhongyuan Machinery Manufacturer established in the year 2003 are indulged in manufacturing and exporting Roll Forming Machine. We offer an extensive range of Roll Forming Machine, C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine. We supply the best quality products to our clients. in addition to this, we also provide on-time delivery of roll forming machines.
We guarantee lifetime services for our machines.Our experience technicians can go to your factory and train your workers.
Get Free Quote
After-Sale Service
- The warranty is 36 months after the client receives the machine.
- Within The 36months, we will send replacement parts to the client free of charge.
- Provide life technology support and maintenance service .
- Operation manual and installation videos will be supplied to buyers when delivery of machines.

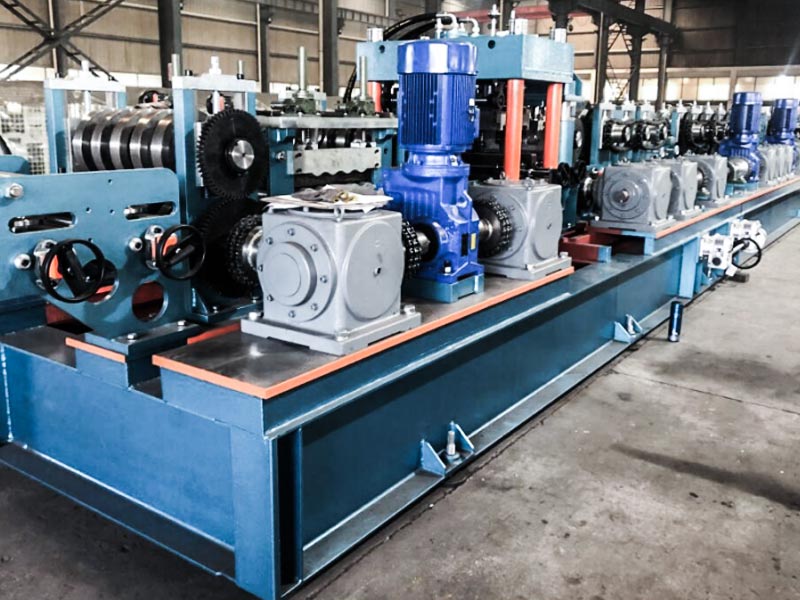

Advantages of this purlin roll forming machine
- This purlin roll forming machine is one automatic purlin rolll former.
- When user wants to make different sizes of Cee or Zee or U shape purlin , people key in and then the control system adjusts the different sizes automatically. Just push the button and the rollers will automatically adjust the required sizes without being adjusted by people.
- Change of C type or Z type, change the turnover device manually.
- Within 20 minutes finish change from C to Z purlin.

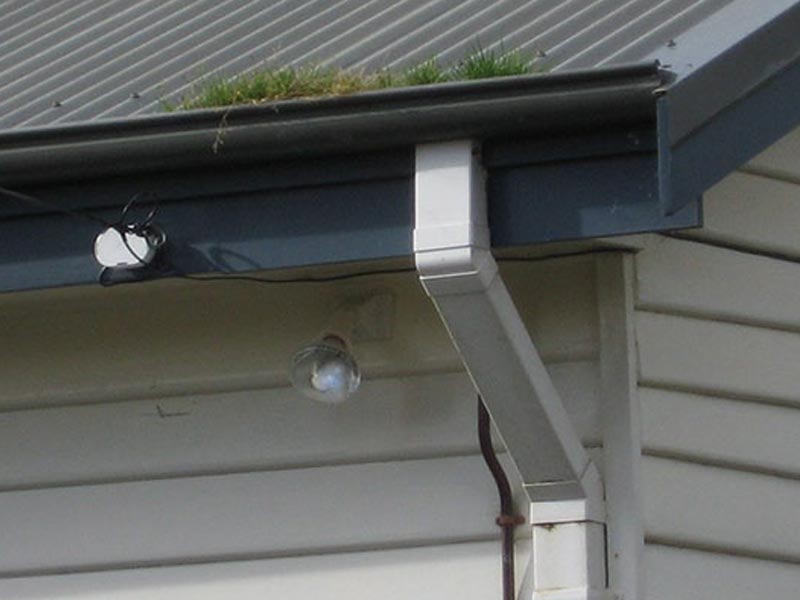

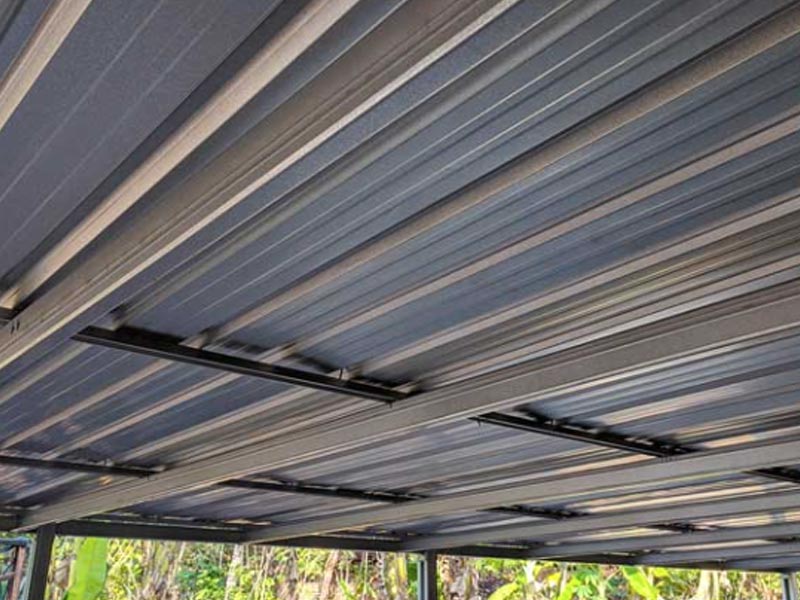

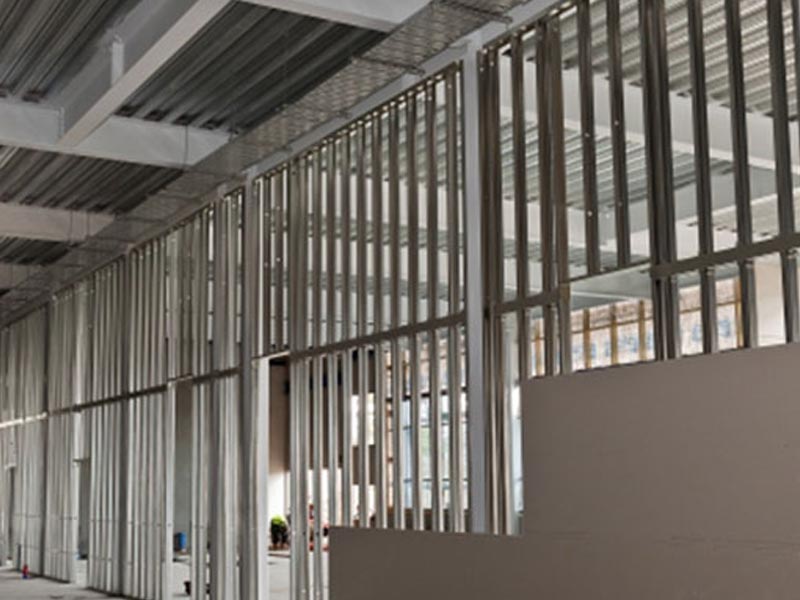

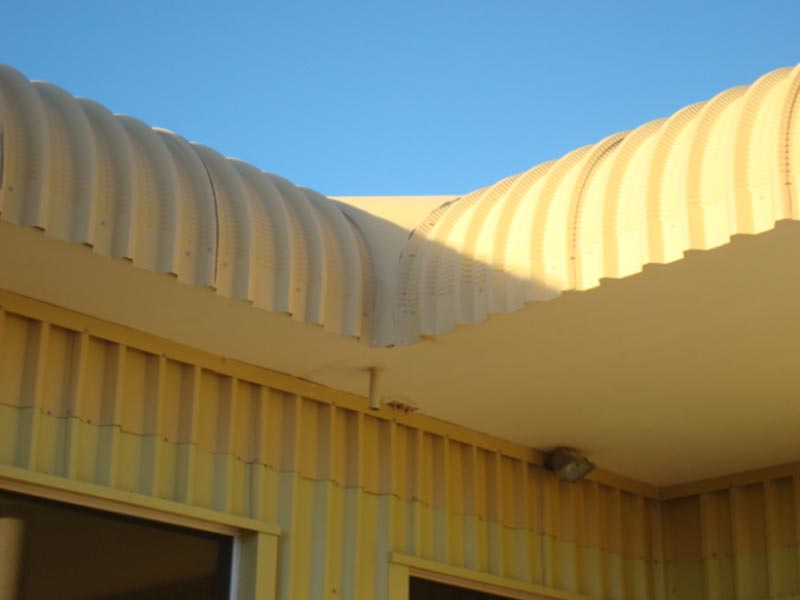

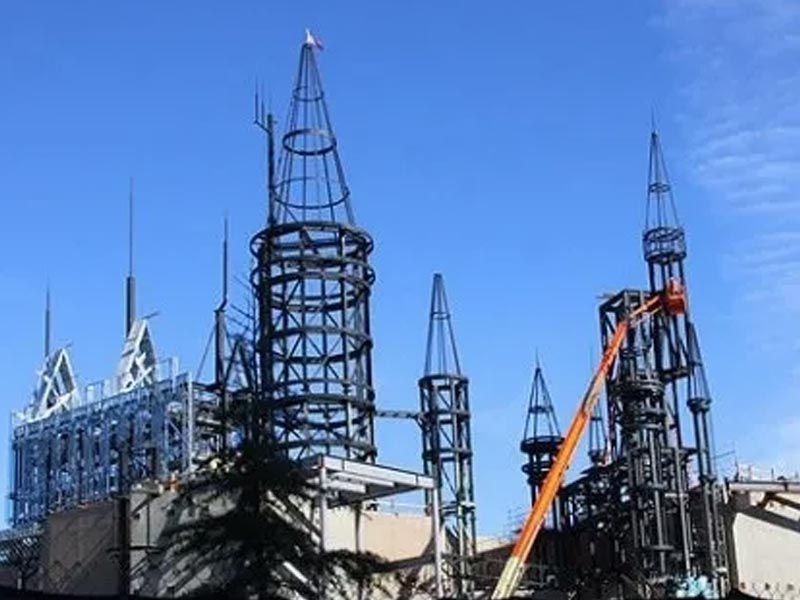

Application of Crimping Machine
The product from the roll forming machines is used as roof of building.
