Ceiling Roll Forming Machine
- The warranty is 36 months after the client receives the machine.
- Within The 36 months, we will send replacement parts to the client free of charge.
- Provide life technology support and maintenance service .
- Operation manual and installation videos will be supplied to buyers when delivery of machines.
Technical Data Of Ceiling Roll Forming Machine
| Suitable Material | PPGI COILS |
| Thickness of raw material | 0.4-0.5mm (235-345Mpa) |
| Material of roller | 45# steel being quenched treatment |
| Material of cutter blade& punching die | Cr12 mould steel with quenched treatment, HRC58-60 |
| Material of shaft | High quality 45# steel with heat treatment. Roller grinder milling. |
| Forming speed | about 17m/min |
| Power Requiremen | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 2.2Kw (Depend on final design) | |
| Controlling system | Mitsubishi PLC & converter |
| Quantity of rollers | about 17stations |
| Weight of machine | About 5500KGS |
| Size of machine installation | about 6.65m x 0.9 m x1.7m |
The Best Solution For
Ceiling Roll Forming Machine
China Zhongyuan Machinery Manufacturer established in the year 2003 are indulged in manufacturing and exporting Roll Forming Machine. We offer an extensive range of Roll Forming Machine, C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine. We supply the best quality products to our clients. in addition to this, we also provide on-time delivery of roll forming machines.
We guarantee lifetime services for our machines.Our experience technicians can go to your factory and train your workers.
Get Free Quote
Advantage Of This Ceiling Machine
- One set of ceiling roll forming machine can realize forming and folding fully automatically,to save labor cost and get high efficiency for building decoration .
- Full automatic high speed ceiling roll forming machine is for producing and manufacture the metal ceiling panels. Right now most metal ceiling roll forming machine manufacturers use semi-auto or manual production lines to produce all kinds of ceiling sheet.
- High speed ceiling roll forming machine, with less workers and get high speed production line. Few operators and high precision to ensure your products quality and high profit. Our high speed ceiling roll forming machine is featured with high speed, less workers and precision final products. It is easy to control the final product quality and make the production cost lower to get your products more strength. Two persons can operate one ceiling roll forming machine well.
Quick Details
- Brand: Zhongyuan
- Machine type:Ceiling roll forming machine
- Yield strength :235-345Mpa ,0.4-0.7mm
- Electrical motor : 5.5KW
- Hydraulic motor power: 5.5KW
- Production-speed: about 20m/min.
- Forming rollers: No.45 steel, CNC process, plated with chrome on surface.
- Machine Size: 6.65 m×0.9m× 1.6m
- Blade material :
- CR12MOV. , after heat treatment HRC58-60 .
Control system : Mitsubishi PLC and screen. - Place of Origin: Hangzhou,China
- Warranty : 24 months
- Certification: ISO9001 and CE

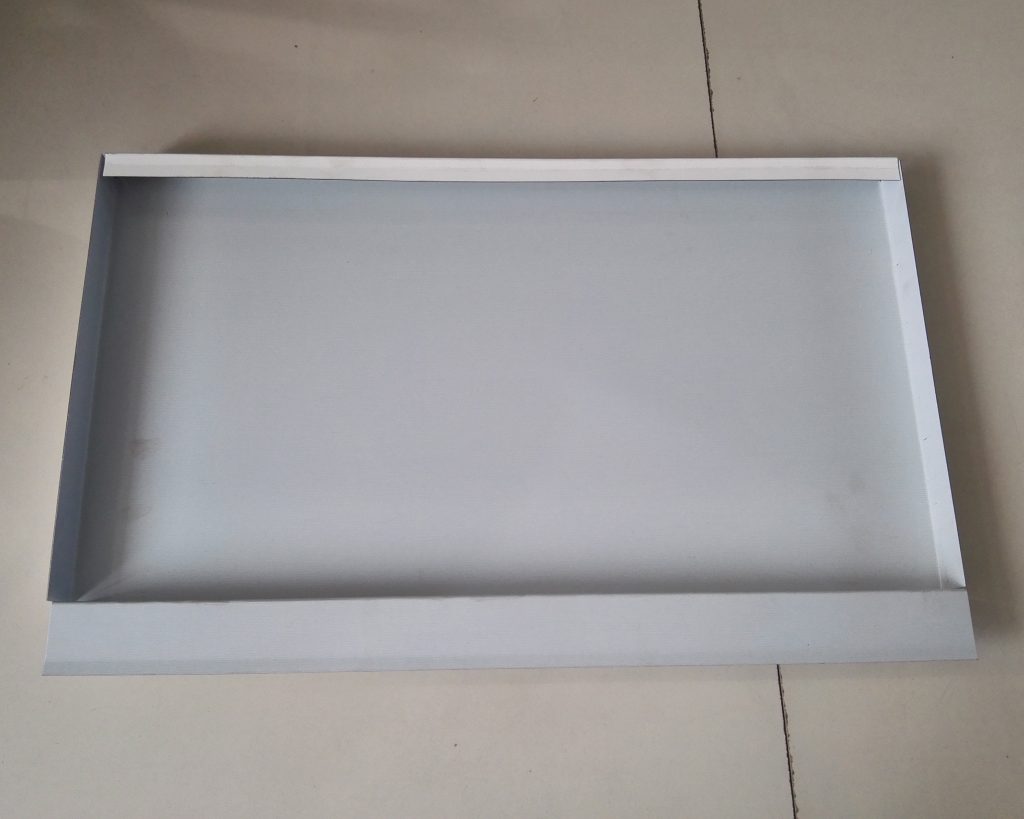

Products Shows
Application of Ceiling Roll Forming Meachine
