What’s Box Beam Roll Forming Machine?

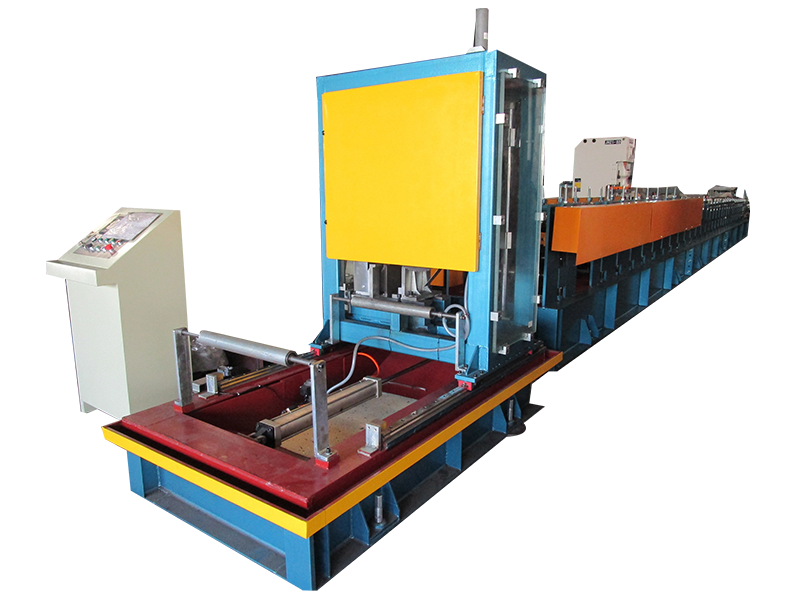

Racking System Box Beam Roll Forming Machine is designed to produce various sizes of box beams as buyer’s requirements. The Thickness is 2.0-3.0mm.

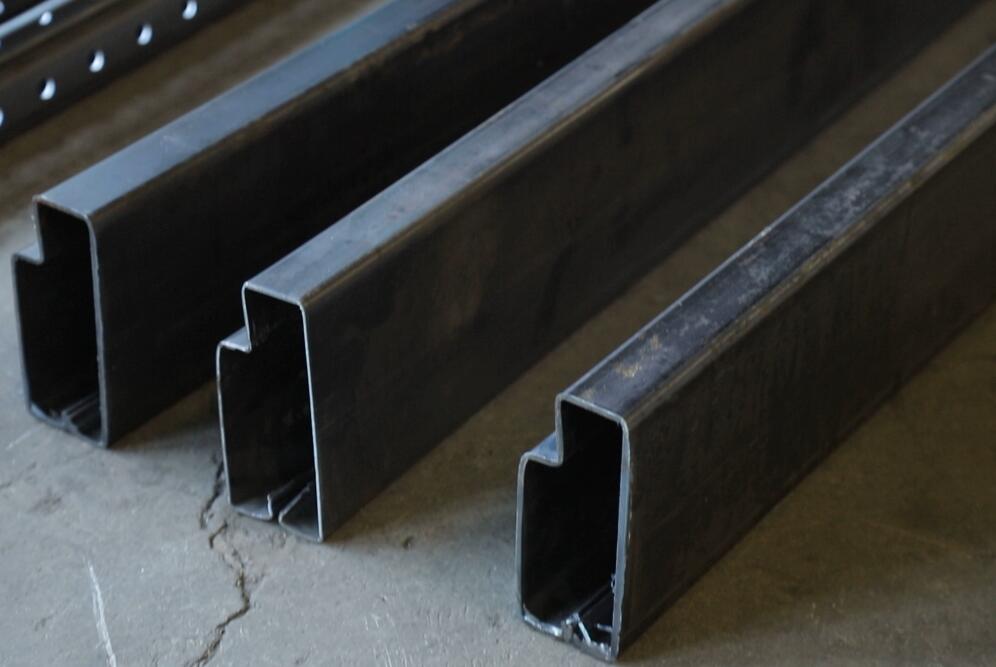

Box beams have no inset step, instead have four flat sides like a box. All load beams typically mount onto an upright frame column with integral rivets or hooks.
Some systems utilize an extra clip or bolt to lock the beam to the upright. Nowadays, the box beams usually made up from two identical c channels nested together to form into a box.
Box Beam is the most strong compare with other types of beams.

Technical Data Of Beam Roll Forming Machine

Suitable Material Cold-rolled steel coils
Thickness of raw material 2.0-3.0mm (235-345Mpa)
Material of roller Cr12 mould steel being quenched treatment,HRC58-60
Material of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment. Roller grinder milling.
Forming speed About 15m/min
Power Requiremen Main motor power: 22Kw(Depend on final design)
Hydraulic station power: 18..5Kw (Depend on final design)
Diameter of shaft for rollers 82mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers about 30 stations
Weight of machine About 15000KGS
Size of machine installation About 18mX1.7mx2.15m

The Best Solution For
Beam Roll Forming Machine

China Zhongyuan Machinery Manufacturer established in the year 2003 are indulged in manufacturing and exporting Roll Forming Machine. We offer an extensive range of Roll Forming Machine, C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine. We supply the best quality products to our clients. in addition to this, we also provide on-time delivery of roll forming machines.

We guarantee lifetime services for our machines.Our experience technicians can go to your factory and train your workers.

Get Free Quote

Quick Details

  • Brand: Zhongyuan
  • Machine name:Beam roll Forming Machine
  • Material thickness:2.0-3.0mm
  • Output speed: about 8m/min.with holes
  • Rollers material: CR12 mould steel, quenched treatment
  • Shafts for rollers: diameter 82mm, solid steel
  • Gross weight: 15000kgs
  • Cutting Blade: CR12MOV. Heat treatment. Guarantee 3 years usage life.
  • Machine size:15.3*1.7*2.15m (LxWXH)
  • Main motor power: 30Kw
  • Roller stations:30 stations
  • Automatic control: Mitsubishi PLC , converter and screen.
  • Guarantee term two years
  • Delivery time: within 80 days.
